Lub Hydraulic Direct-Tswj Nres Nres yog ib txwm qhib, hydraulically actuated ntaus ntawv engineered rau hnyav-lub luag hauj lwm machinery. Siv siab - lub zog disc springs rau kev rov pib dua thiab ncaj qha hydraulic actuation, tus nres muab kev ruaj ntseg clamping quab yuam thiab tuav kev ua tau zoo.
Qhov Zoo Tshaj Plaws
Direct-Tswj Hydraulic Design:Hydraulic roj ncaj qha actuates lub piston rau cov lus teb ceev ceev thiab lub zog sib xws.
Automatic Wear Compensation:Kev sib txhuam daim hlau tus kheej- kho tau thaum lub sijhawm ua haujlwm, txo qis cov nqi kho mob.
Flexible B2B Integration:Muaj nyob rau hauv ntau qhov kev teeb tsa nrog kev hloov kho spacers kom seamlessly haum ob qho tib si 15mm thiab 30mm disc thicknesses.

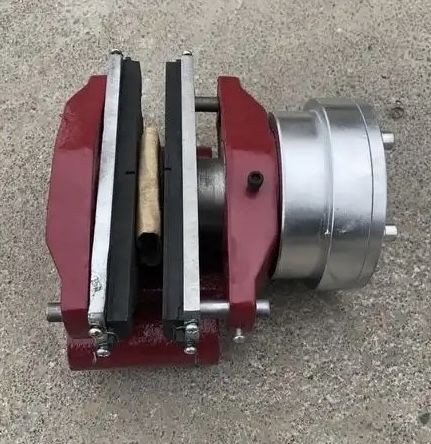

Hydraulic Direct -Acing NresADH60, ADH90 thiab ADH120 Series Brakes - Siv Nres Nres Disc Thickness: 15 mm lossis 30 mm.
Technical data
| Qauv | ADH 60 | TSI 90 | TSI 120 |
| Ua haujlwm siab (bar) | 50 | 50 | 50 |
| Braking quab yuam (N) | F=(P-2.5)×156 | F=(P-2.5)×300 | F=(P-2.5)×471 |
| Roj lub tog raj kheej ntim (cm ³) | 26 | 35 | 54.9 |
| Qhov hnyav (kg) | 11 | 23 | 45 |

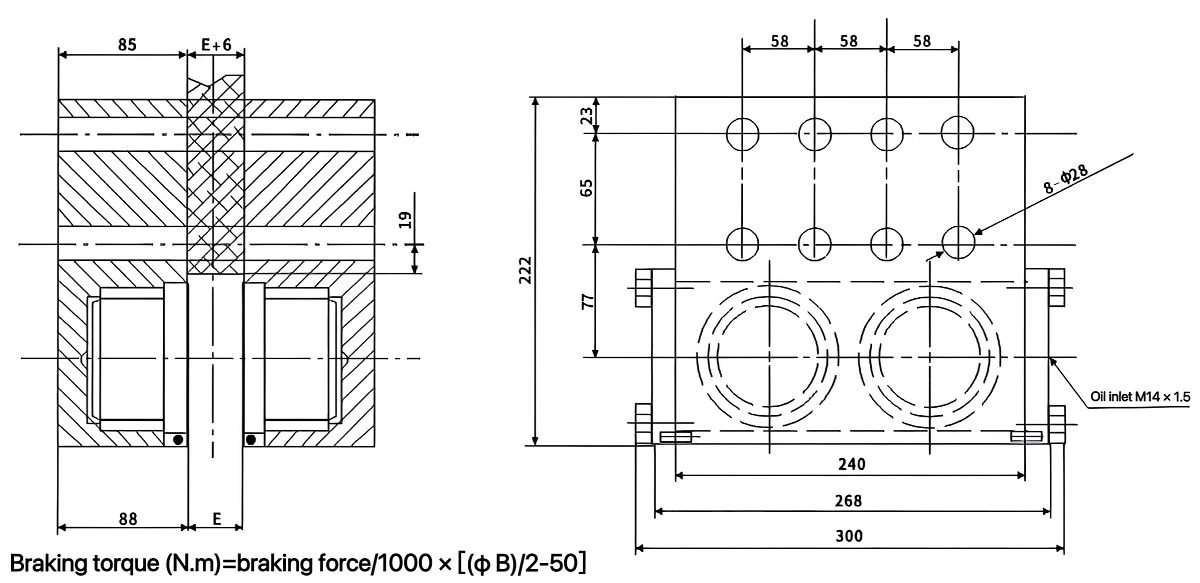

Daim ntawv qhov ntev
| Qauv | A | B | C | D | d | E | F | G | L | H | M | N |
| ADH 60 | 45 | 72 | 137 | 40 | 25 | 156 | 33 | 60 | 241 | 190 | 50 | 56 |
| TSI 90 | 65 | 80 | 180 | 50 | 30 | 205 | 50 | 90 | 285 | 222 | 61 | 56 |
| TSI 120 | 80 | 103 | 238 | 58 | 35 | 284 | 68 | 120 | 375 | 245 | 73 | 58 |

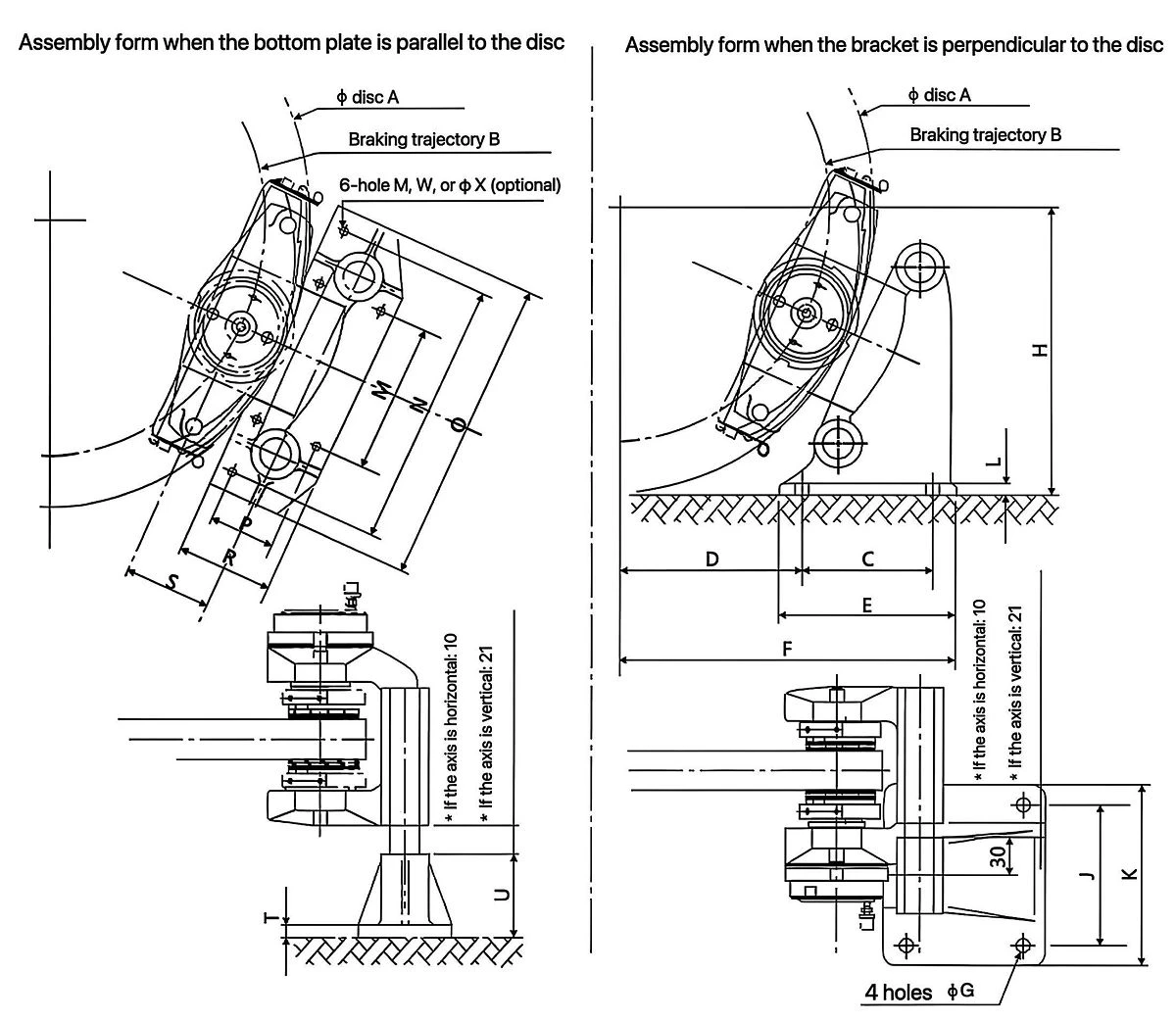

ADH60, ADH90 & ADH120 Series Brakes - Siv Nres Nres Disc Thickness: 15mm lossis 30mm

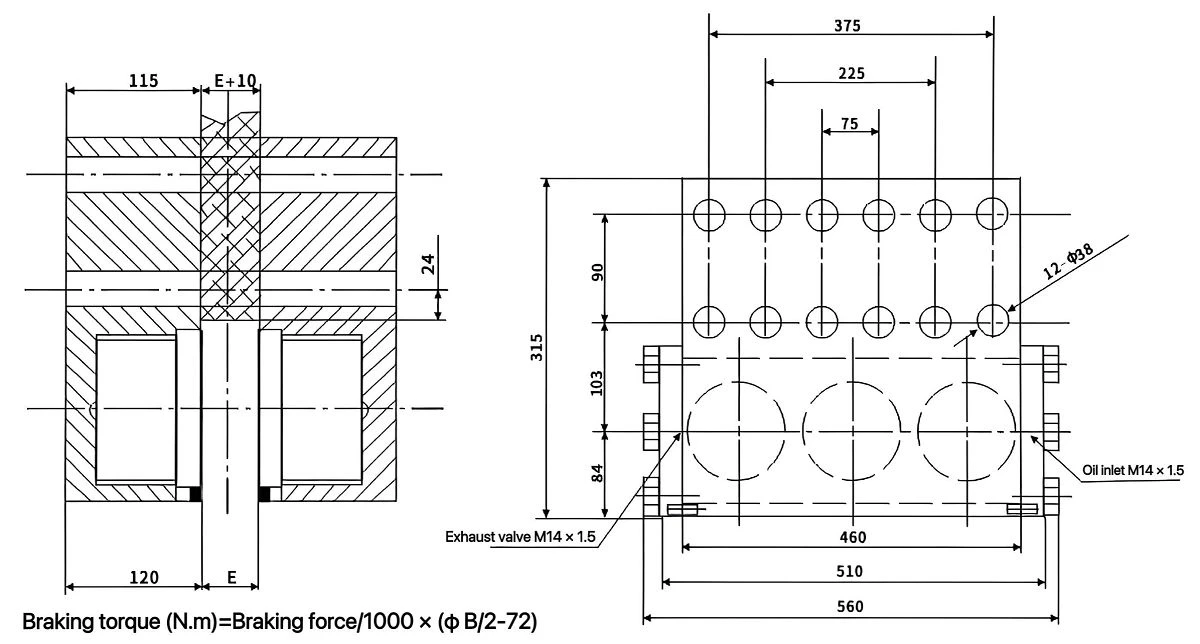

Daim ntawv qhov ntev
| Nres | A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | R | S | T | U | W | X |
| ADH 60 | 315 | 117 | 90 | 135 | 130 | 245 | 12 | 160 | 110 | 140 | 10 | 120 | 210 | 240 | 54 | 80 | 72 | 10 | 65 | 8 | 9 |
| 355 | 138 | 95 | 145 | 135 | 260 | 12 | 180 | 110 | 140 | 10 | 120 | 210 | 240 | 54 | 80 | 72 | 10 | 65 | 8 | 9 | |
| 395 | 156 | 105 | 150 | 145 | 275 | 12 | 200 | 110 | 140 | 10 | 120 | 210 | 240 | 54 | 80 | 72 | 10 | 65 | 8 | 9 | |
| 445 | 183 | 115 | 160 | 155 | 295 | 12 | 225 | 110 | 140 | 10 | 120 | 210 | 240 | 54 | 80 | 72 | 10 | 65 | 8 | 9 | |
| TSI 90 | 495 | 190 | 145 | 165 | 195 | 335 | 14 | 250 | 120 | 150 | 15 | 160 | 270 | 300 | 66 | 96 | 80 | 12 | 70 | 10 | 11 |
| 550 | 220 | 155 | 180 | 205 | 360 | 14 | 280 | 120 | 150 | 15 | 160 | 270 | 300 | 66 | 96 | 80 | 12 | 70 | 10 | 11 | |
| 625 | 255 | 170 | 190 | 220 | 385 | 14 | 315 | 120 | 150 | 15 | 160 | 270 | 300 | 66 | 96 | 80 | 12 | 70 | 10 | 11 | |
| TSI 120 | 705 | 278 | 210 | 230 | 270 | 470 | 16 | 355 | 140 | 175 | 20 | 200 | 370 | 400 | 70 | 100 | 103 | 15 | 85 | 12 | 13 |
| 795 | 322 | 230 | 250 | 290 | 510 | 16 | 400 | 140 | 175 | 20 | 200 | 370 | 400 | 70 | 100 | 103 | 15 | 85 | 12 | 13 |
Hydraulic Direct-Tswj Nres Nres - Siv Sab Nraud Siab
DADH75 Hydraulic Direct-Acting Nres
| Nres quab yuam | 671×siab (siabTsawg dua los yog sib npaug200 bar) N |
| Chav ntsuas siab | bar |
| Nres disc txoj kab uas hla Φ B | mm |
| Haum rau disc txoj kab uas hla | Ntau dua lossis sib npaugΦ700 (mm) |
| Qhov hnyav | 54 (kg) |
DADH80 Hydraulic Direct-Tswj Nres
| Nres quab yuam | 746×siab (siabTsawg dua los yog sib npaug200 bar) N |
| Chav ntsuas siab | bar |
| Nres disc txoj kab uas hla Φ B | mm |
| Haum rau disc txoj kab uas hla | Ntau dua lossis sib npaugΦ700 (mm) |
| Qhov hnyav | 58 (kg) |
DADH90 Hydraulic Direct-Tswj Nres
| Nres quab yuam | 967×siab (siabTsawg dua los yog sib npaug200 bar) N |
| Chav ntsuas siab | bar |
| Nres disc txoj kab uas hla Φ B | mm |
| Haum rau disc txoj kab uas hla | Ntau dua lossis sib npaugΦ900 (mm) |
| Qhov hnyav |
DADH120 Hydraulic Direct-Acting Nres
| Nres quab yuam | 2579×siab (siabTsawg dua los yog sib npaug200 bar) N |
| Chav ntsuas siab | bar |
| Nres disc txoj kab uas hla Φ B | mm |
| Haum rau disc txoj kab uas hla | Ntau dua lossis sib npaugΦ1800 (mm) |
| Qhov hnyav |
Daim phiaj siv
Peb cov hydraulic ncaj qha - ua tus nres nres tau ntseeg thoob ntiaj teb hauv kev lag luam hnyav uas xav tau kev nyab xeeb thiab tuav - lub zog:
Cua Zog:Haum rau cua turbine yaw tshuab thiab rotor xauv daim ntawv thov uas yuav tsum tau muaj kev ruaj ntseg tuav quab yuam.
Khoom Siv & Mining:Ua tsis tiav- tuav ruaj ntseg rau inclined overland conveyors, stacker-reclaimers, thiab hnyav- lub luag haujlwm hoists.
Chaw nres nkoj Machinery:Huab cua nres nres nres, boom hoists, thiab nres thaum muaj xwm ceev rau lub thawv cranes thiab nkoj thauj khoom.
Metallurgy & Heavy Drives:Thaum muaj xwm ceev tuav calipers rau steel dov mills thiab industrial drive kab thaum fais fab tuag.
Vim li cas thiaj xaiv peb?
Muaj peev xwm OEM / ODM:Siab customizable mounting qhov ntev thiab kev cai braking quab yuam configurations kom phim koj cov cuab yeej cuab tam.
Certified Quality:Tsim nyob rau hauv ISO9001: 2015 kev tswj xyuas zoo. Txhua chav nyob tau dhau 100% kev ntsuas siab ua ntej xa khoom.
Ntiaj teb no ua raws:Muaj nrog CE, ATEX (Explosion-Cov Ntaub Ntawv Pov Thawj), thiab ABS (American Bureau of Shipping) cov ntawv pov thawj kom ua tau raws li kev tswj hwm nruj hauv cheeb tsam lossis cov phiaj xwm dej hiav txwv.
FAQ
Q: Kuv yuav suav li cas braking quab yuam yog tias lub kaw lus siab hloov pauv?
A: Siv cov qauv saum toj no. Rau ADH series, 2.5-bar txiav tawm nyiaj rau kev kov yeej cov khoom rov qab sab hauv. Peb pom zoo kom ntxiv lub siab-regulating valve kom stabilize cov zis torque.
Q: Thaum twg yuav tsum tau hloov cov txhuam txhuam?
A: Thaum cov khoom siv tsis siv neeg tsis siv neeg tswj hwm qhov sib txawv ntawm huab cua tsis tu ncua thaum hnav cov ntaub qhwv, cov ntaub qhwv yuav tsum tau hloov manually thaum lawv hnav mus rau qhov sib xyaw ua ke ntawm cov khoom txwv.
Q: Ib chav ADH puas tuaj yeem haum 15mm thiab 30mm discs?
A: Cov cylinders sab hauv yog zoo ib yam, tab sis tshwj xeeb spacer configurations yuav tsum tau. Thov qhia koj lub disc thickness thaum xaj kom peb tuaj yeem ua ntej - teeb tsa chav tsev.
Q: Koj puas muab CAD qauv thiab kev cai mounting?
A: Yog lawm. 2D/3D STEP cov ntaub ntawv muaj rau kev koom ua ke engineering. Peb kuj muab kev cai mounting brackets kom haum raws li keeb kwm retrofits.
