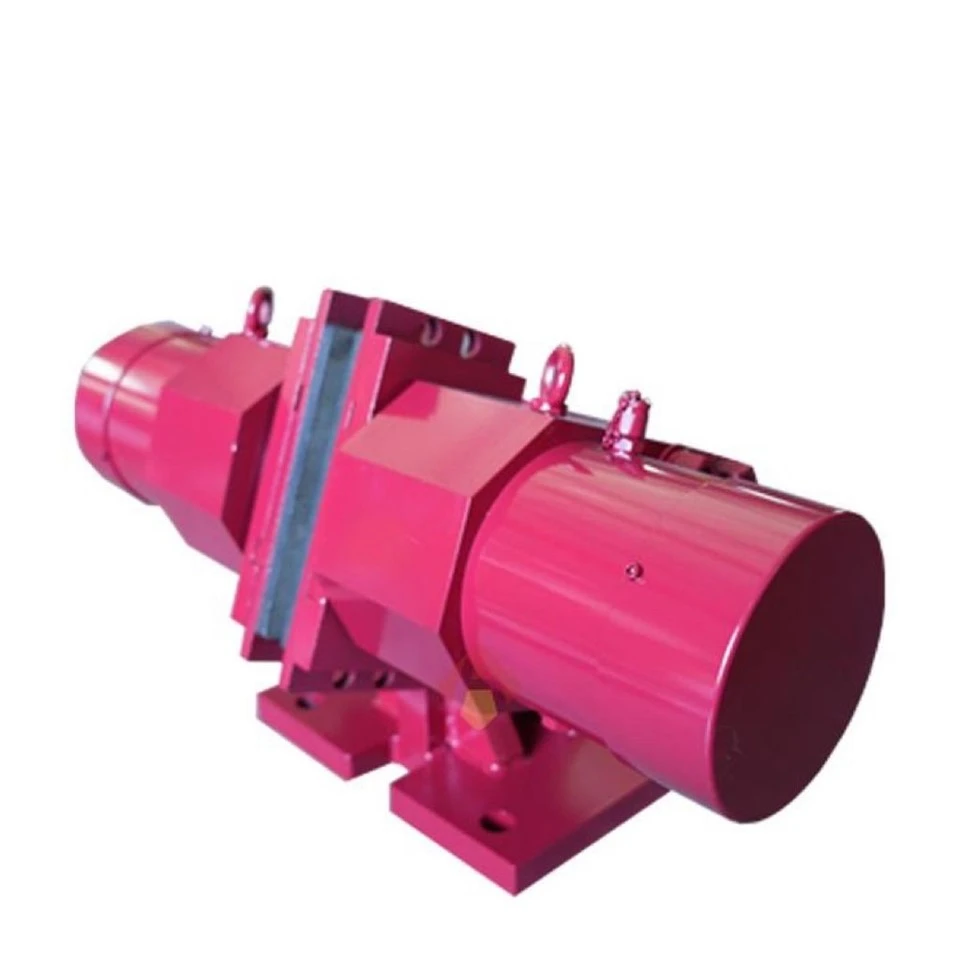

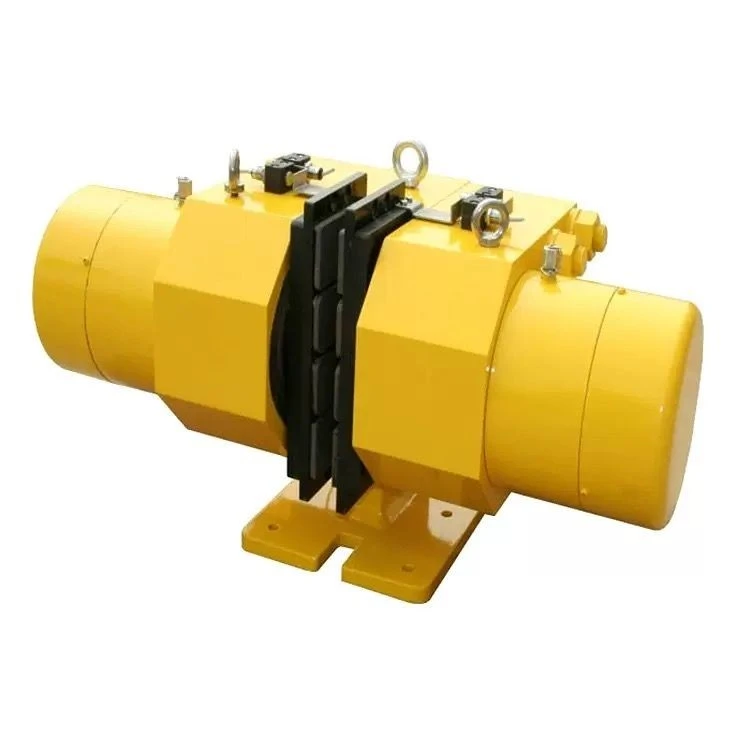

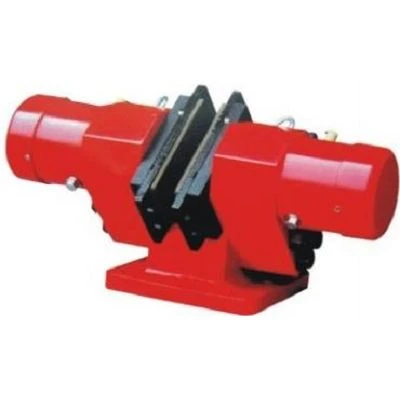

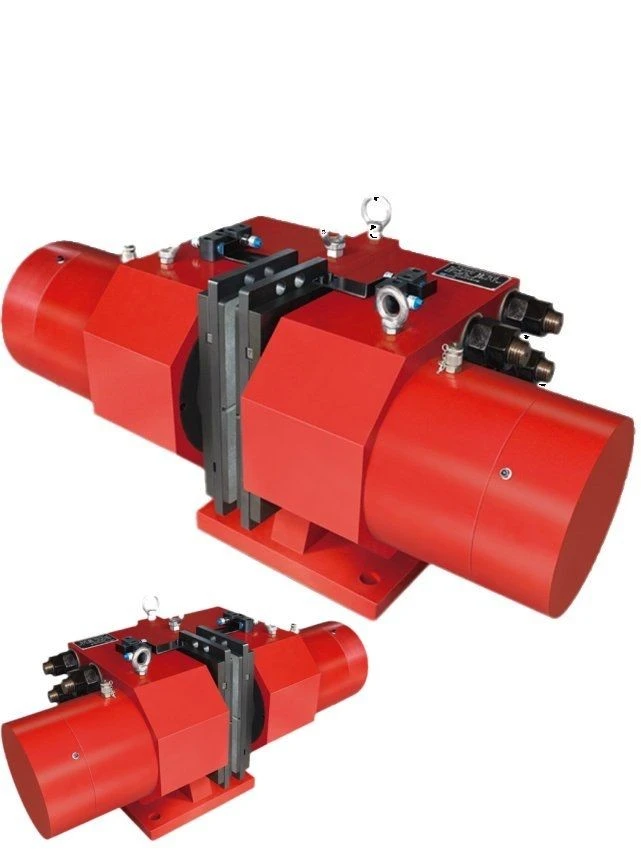

Product Description
Peb pneumatic tsis ua haujlwm- nres nres yog lub caij nplooj ntoos hlav- siv, huab cua- tso tawm cov chaw ruaj ntseg tsim los muab kev ceev ceev- teb thaum muaj xwm txheej ceev thiab xoom- plam tuav lub zog rau cov kab ntau lawm, hnyav winding spool shafts, printing presses, thiab industrial conveyor drives.
Pneumatic Actuation & Core Safety Engineering
Instant Fail-Kev Sib Raug Zoo:Siv siab - quab yuam sab hauv disc springs uas tam sim ntawd clamp qhov kev sib txhuam nres lem lub caij huab cua siab poob los yog lub zog hluav taws xob cuam tshuam cov pneumatic solenoid mov.
Tsawg-Kev Sib txhuam Quad-Seal Technology:Sab hauv piston chamber nta premium nitrile los yog fluororubber (Viton) multi- di ncauj ntsaws ruaj ruaj, tuav lub siab kiag li tuav nrog ib tug ultra- tsawg breakaway siab yuav tsum tau tsawg tshaj li 1.5 bar.
Rapid Exhaust Optimization:Tsim los nrog cov huab cua sab hauv uas tsis tshua muaj kev tshem tawm thiab cov khoom siv ntau dhau / tso tawm cov chaw nres nkoj kom ua kom cov cua ntws nrawm, ua tiav cov lus teb thaum muaj xwm txheej ceev ntawm qis dua 50 milliseconds.
Qhuav, Kho-Kev Ua Haujlwm Dawb:Internal swb lem feature ruaj khov - graphite lubricants, tso cai rau lub tog raj kheej nres ua flawlessly rau ntau lab strokes yam tsis tas yuav tsum tau inline roj lubrication.
Structure Alignment & Machining Tolerances
| Cheeb Tsam Cheeb Tsam | Tswj Txoj Kev & Kev Ntsuas Zoo |
| Lub cev lub tog raj kheej | Hard-anodized siab- tensile aluminium alloy lossis ductile hlau nrog daim iav- honed puab bore. |
| Piston Ncej | Precision-cov hlau hauv av nrog lub zog chrome-plated nto txheej los tiv thaiv corrosion thiab scuffing. |
| Caij nplooj ntoos hlav Stack | Multi-txheej Belleville disc springs txheeb los ntawm kev thauj khoom tsis siv neeg-cell sorting kom ntseeg tau tias muaj zog sib npaug. |
| Khau Retainer | Integrated floating caliper layout uas cia li accommodates me ncej runout mus txog 0.2mm. |
| Fastener Zoo | Qib 12.9 siab - tensile alloy steel structural fasteners torqued rau nruj engineering metrics. |
Dynamic Performance Verification
Txhua chav pneumatic tau dhau los ua ntau- taw tes siab thiab kev ua haujlwm ntawm cov txheej txheem ua ntej ntim. Factory Test Reports (FTR) txheeb xyuas cov ntaub ntawv hauv qab no:
Pressure Leakage Hold:Kev ntsuas siab zoo ntawm qhov ntsuas siab tshaj plaws (feem ntau 6 mus rau 7 bar) kom paub meej tias xoom poob tshaj 30 feeb.
Millisecond Teb Logging:Digital sensor taug qab los ntsuas qhov ceev ceev ntawm huab cua tso rau 100% torque kev koom tes.
Caij nplooj ntoos hlav Fatigue Stroke:Kev ntsuas lub voj voog nrawm nrawm txhawm rau txheeb xyuas lub caij nplooj ntoos hlav rov qab ruaj khov thiab kev sib dhos sib luag.
Smart Upgrades & Configuration Matrix
| Qeb | Muaj Kev Xaiv Engineering |
| Kev sib koom ua ke ntawm Valve | Direct-mounted quick exhaust valves (QEV) kom ntxiv compression thaum muaj xwm ceev nres nres. |
| Telemetry Sensors | Inductive sib thooj sensors los saib xyuas "Brake Tso" lossis "Lining Worn" txoj haujlwm rau PLC inputs. |
| Corrosion tiv thaiv | Stainless hlau 316 cov khoom siv sab hauv rau cov zaub mov hnyav -kev ua haujlwm lossis kev siv dej hiav txwv. |
| Phau ntawv tso tawm | Integrated mechanical bolt overrides cia phau ntawv nres tso tawm thaum lub Hoobkas teeb lossis xoom- huab cua tu. |
| Kev sib txhuam Matrix | High-zog ib nrab-cov ntaub ntawv hlau rau siab- nrawm indexing / Organic nyob ntsiag to linings rau textile machinery. |
Qauv Tsim

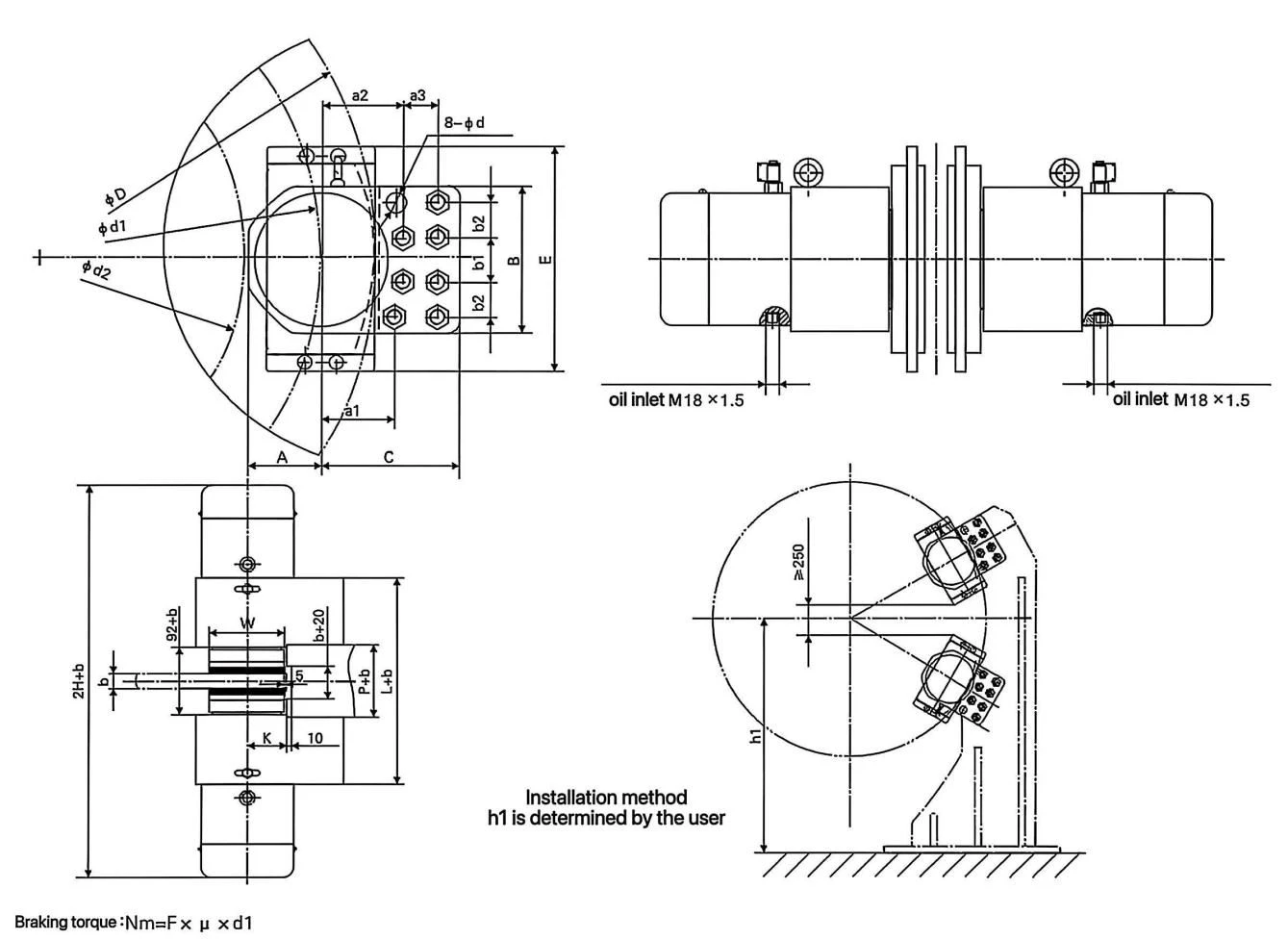

Sab nraud qhov ntev
Daim ntawv qhov ntev
| Khoom qauv | A | a1 | a2 | a3 | b1 | b2 | B | C | d | n | K | P | L | E | W | H |
| SB(YQP) 50 | 77 | 77 | 90 | 38 | 38 | 38 | 154 | 150 | 20.5 | 8 | 56 | 102 | 300 | 240 | 110 | 299 |
| SIB (YOP) 100 | 95 | 95 | 105 | 45 | 55 | 45 | 190 | 180 | 25 | 8 | 71 | 102 | 348 | 286 | 140 | 345 |
| SIB (YQP) 160 | 110 | 120 | 135 | 65 | 70 | 65 | 260 | 235 | 31 | 8 | 87 | 106 | 412 | 370 | 170 | 398 |
| SIB (YQP) 250 | 130 | 120 | 160 | 75 | 80 | 75 | 300 | 275 | 37 | 8 | 87 | 106 | 456 | 370 | 170 | 459 |
| TIAB SA 315 | 140 | 175 | 205 | 85 | 90 | 82.5 | 335 | 330 | 37 | 8 | 137 | 106 | 476 | 410 | 270 | 500 |
| 400 SB (SIB). | 170 | 180 | 220 | 120 | 110 | 110 | 440 | 420 | 50 | 8 | 137 | 142 | 602 | 546 | 270 | 549 |
Nres Disc -Related Dimensions
| Khoom qauv | b | D | d1 | d 2 Max | ||
| SB(YQP) 50 | 30 | 36 | 40 | Ntau dua lossis sib npaug li 500 | D-120 | D-300 |
| SIB (YQP) 100 | 30 | 36 | 40 | Ntau dua lossis sib npaug li 500 | D-150 | D-380 |
| SIB (YQP) 160 | 30 | 36 | 40 | Ntau dua lossis sib npaug li 600 | D-180 | D-440 |
| SIB (YQP) 250 | 30 | 36 | 40 | Ntau dua lossis sib npaug li 600 | D-180 | D-480 |
| TIAB SA 315 | 30 | 36 | 40 | Ntau tshaj los yog sib npaug rau 1200 | D-280 | D-600 |
| 400 SB (SIB). | 30 | 36 | 40 | Ntau dua lossis sib npaug rau 1800 | D-280 | D-660 |
Cov ntaub ntawv technical
| Khoom qauv | Clamping quab yuam (KN) | tso siab(Mpa) | Qhib valve roj ntim (ML) | Retreat nrug(mm) | Kev sib txhuam coefficient (μ) | Installation bolts /lub zog qhov tseem ceeb / torque(N.m) | Qhov hnyav (tsis suav nrog bracket)(Kg) |
| SB(YQP) 50 | 50 | 11 | 15 | 2 | 0.4 | 8-M20,12.9,750 | 90 |
| SIB (YQP) 100 | 100 | 12 | 50 | 2 | 0.4 | 8-M24,12.9,1000 | 150 |
| SIB (YQP) 160 | 160 | 12 | 70 | 2 | 0.4 | 8-M30,12.9,1500 | 310 |
| SIB (YQP) 250 | 250 | 13 | 95 | 2 | 0.4 | 8-M36,12.9,2500 | 552 |
| TIAB SA 315 | 315 | 14 | 115 | 2 | 0.4 | 8-M36,12.9,3540 | 672 |
| 400 SB (SIB). | 400 | 12 | 170 | 2 | 0.4 | 8-M48,12.9,4000 | 1100 |
Kev Ua Haujlwm Ntev Ntev & Qhov Chaw Ua Haujlwm
Air Supply Quality:Xyuas kom cov cua compressed nkag los ntawm tus qauv 5-micron lim thiab ya raws cais kom tsis txhob muaj lub tog raj kheej condensation.
Kev Tshawb Fawb:Tshawb xyuas lub sijhawm ua haujlwm ntawm qhov chaw nres nkoj mufflers rau ib qho kev qhia ntawm pneumatic roj pos huab, uas qhia tau hais tias sab hauv piston foob hnav.
Kev hloov Torque:Txheeb xyuas cov cim qhia txog kev hnav khaub ncaws; tswj kev rov qab kom raug tshem tawm kom tsis txhob muaj cua daj cua dub nce siab los ntawm kev ua kom nrawm nrawm.
FAQ
Q: Dab tsi ntawm huab cua siab tsawg kawg nkaus yuav tsum tau ua kom qhov tsis ua haujlwm no - nres nres nres tag nrho?
A: Cov qauv qauv yuav tsum muaj qhov tsawg kawg nkaus cua siab ntawm 4.5 mus rau 5.5 bar kom tag nrho cov compresses sab hauv thiab tshem tawm txoj kev sib txhuam. Kev kub siab qis tuaj yeem ua rau cov khau khau khiab.
Q: Yuav ua li cas lub pneumatic kev ruaj ntseg nres piv rau electromagnetic nres?
A: Pneumatic tsis ua haujlwm-kev nyab xeeb nres xa cov torque siab dua- rau- qhov sib piv loj, khiav txias dua vim tias lawv tsis muaj hluav taws xob coils rub lub zog txuas ntxiv, thiab yog qhov tshwm sim tshwm sim - pov thawj.
Q: Lub nres nres no puas tuaj yeem tswj xyuas cov ntawv thov kom nruj, lossis puas yog nruj me ntsis rau -tawm kev nyab xeeb?
A: Cov koob tshwj xeeb no tau tsim ua lub caij nplooj ntoos hlav- siv tsis tau- nres nres thaum muaj xwm txheej ceev thiab tuav. Rau kev nruam tensioning los yog slipping lub luag hauj lwm, thov nug peb pab neeg rau peb cov huab cua- siv, siab-modulated nro nres series.
Q: Puas yog cov kev sib txhuam ntawm cov ntaub qhwv tau yooj yim hloov tsis tau tshem tus nres ntawm lub ntsiab ncej?
A: Yog. Peb lub tsev tsim caliper / nkawm khau siv cov txheej txheem khaws cia, tso cai rau cov kws kho mob kom xaub tawm cov ntaub npog npog yooj yim los ntawm kev tshem tawm sab nkag bolts.
